Professional Reel to Reel (mono)

Professional Reel to Reel ; Ferry Sound (ID = 2329778) R-Player
Use red slider bar for more.
Professional Reel to Reel ; Ferry Sound (ID = 2329778) R-Player

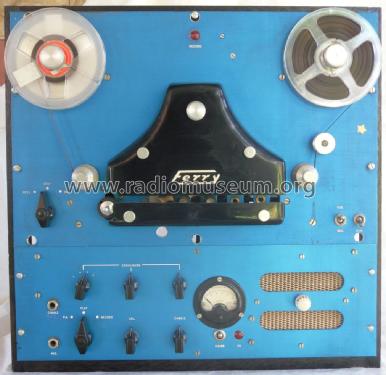

Ferry Sound: Professional Reel to Reel [R-Player] ID = 2329778 1400x1358
Select picture or schematic to display from thumbnails on the right and click for download.
For model Professional Reel to Reel (mono), Ferry Sound Industries; Adelaide S.A.

Country:  Australia
Manufacturer / Brand:  Ferry Sound Industries; Adelaide S.A.
Year: 1956/1957 ? Category: Sound/Video Recorder and/or Player
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Professional Reel to Reel - Ferry Sound Industries;
Dimensions (WHD) 500 x 490 x 250 mm / 19.7 x 19.3 x 9.8 inch
Notes

Ferry Professional tape recorder - three heavy duty motors, 19-inch rack and panel mounting. Three speed with a sleeve on the capstan, 15, 7 1/2 and 3 3/4 ips, with-out the sleeve on the capstan 7 1/2, 3 3/4 and 1 7/8 ips. the tone controls worked during record as well as play. The pickup or aux input could be mixed with the microphone input, and the monitor speaker had volume control for monitoring. The amplifier was push-pull, valves, with an output of 7 watts. Jack Ferry never quoted frequency response unless he had to - his comment was "if it sounds good to your ears, buy it". Made in 1956 or 1957. Owned by Dr John Stace and then donated by Mr D. Flint.

Ellison Pop-Up Museum of Radio & Magnetic Recording. Keith Ellison.

Net weight (2.2 lb = 1 kg) 47 lb (47 lb 0 oz) / 21.338 kg

Model page created by Keith Ellison. See "Data change" for further contributors.
