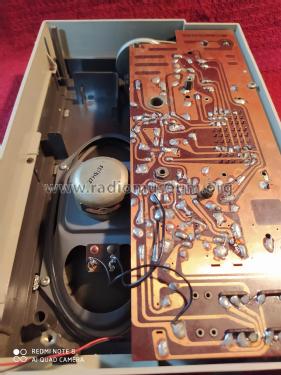

Fidelity Radio Ltd.;: 208 [Radio] ID = 1395611 750x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model 208, Fidelity Radio Ltd.; London:

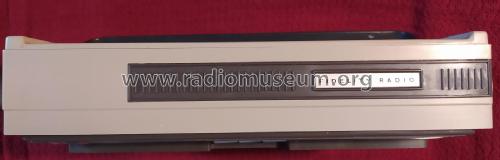

front view

Country:  Great Britain (UK)
Manufacturer / Brand:  Fidelity Radio Ltd.; London
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117 AF117 AF117 AC127 OC81D OC81 AC127
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 208 - Fidelity Radio Ltd.; London

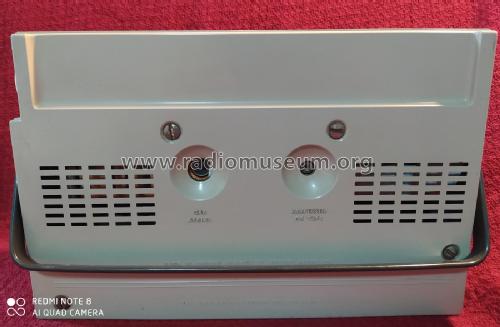

Notes Portable radio with bandspread for Radio Luxembourg. Fitted with sockets for car aerial & earphone. Battery type PP9.
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) -- Schematic

Model page created by Keith Staines. See "Data change" for further contributors.
