• Country
• Great Britain (UK)

• Manufacturer / Brand
• Fidelity Radio Co. Ltd.; London

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93250

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC81D OC81 OC81

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Wooden case

• from Radiomuseum.org

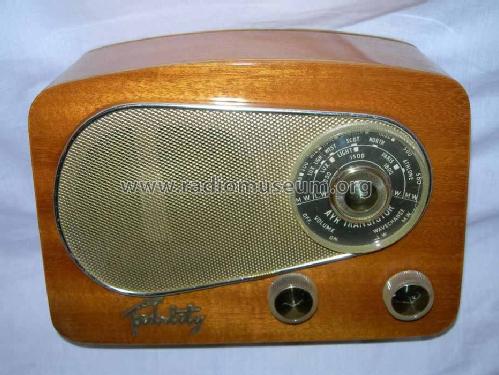

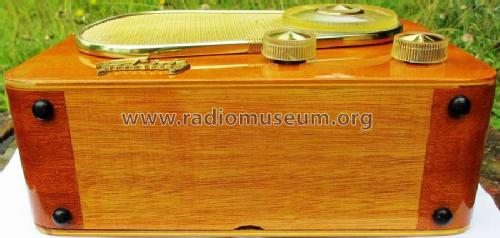

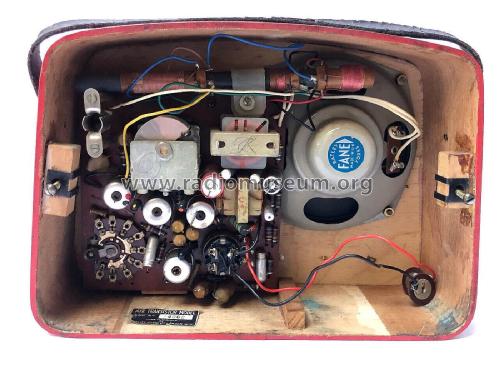

• Model: Ayr - Fidelity Radio Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9.25 x 6.5 x 3.25 inch / 235 x 165 x 83 mm

• Notes

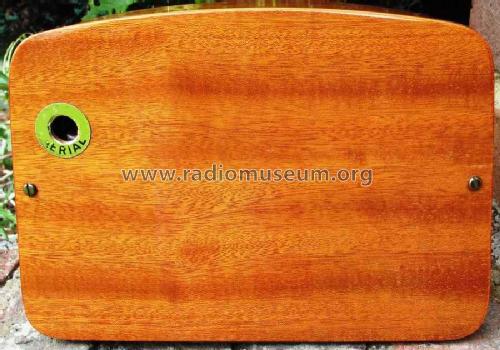

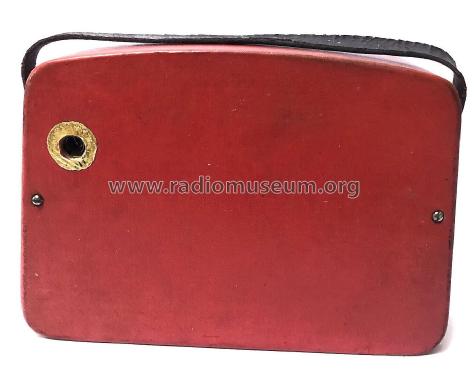

• Socket for external aerial.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Mentioned in
• - - Data from my own collection

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.

• Other Models

• Here you find 74 models, 60 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fidelity Radio Co. Ltd.; London
