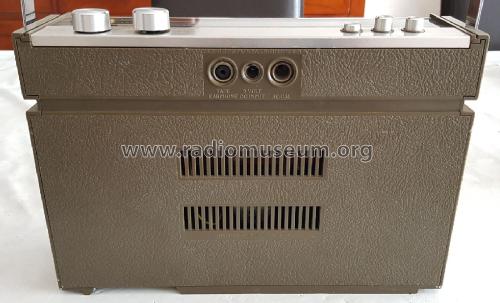

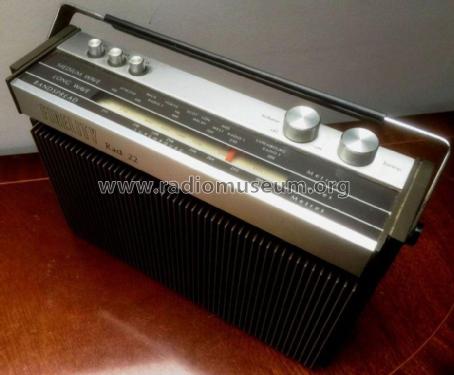

For model RAD22, Fidelity Radio Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Fidelity Radio Ltd.; London
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF194 BF195 BF195 BC148 BC159 AC127 AC128 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: RAD22 - Fidelity Radio Ltd.; London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 200 x 80 mm / 11.8 x 7.9 x 3.1 inch
Notes

Bandspread on MW.

Price in first year of sale 13.50 GBP
Source of data -- Collector info (Sammler)
