• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 272649

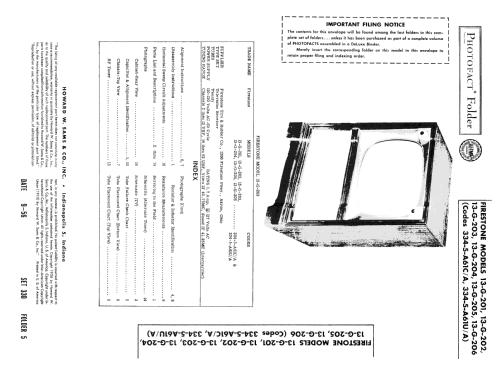

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 21
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 13-G-205 Code 334-5-A61C/A - Firestone Tire & Rubber Co.
  • Shape
  • Console with any shape - in general
  • Notes
  • The FIRESTONE model 13-G-205 Code 334-5-A61C/A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with UHF/VHF tuner 25A1139 and picture tube 21ATP4.



  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
