13-G-212 Code 280-6-21T58
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1957 ? | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 15: 2BN4 5CG8 3CB6 3CB6 5AN8 12BY7A 5AN8 3BN6 5AQ5 6CM7 6CG7 25CD6 19AU4 1B3GT 21ALP4B |
|---|
| Main principle | Superhet with RF-stage |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm |
| Power out | |
| from Radiomuseum.org | Model: 13-G-212 Code 280-6-21T58 - Firestone Tire & Rubber Co. |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Notes | Firestone model 13-G-212 Code 280-6-21T58 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 211-27255 and picture tube 21ALP4B. |

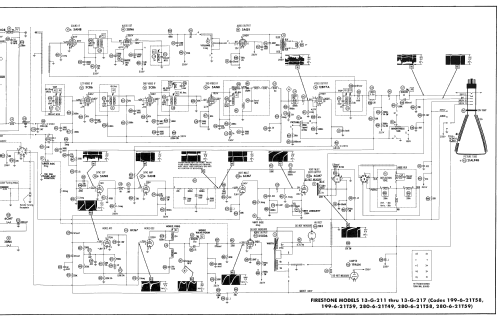

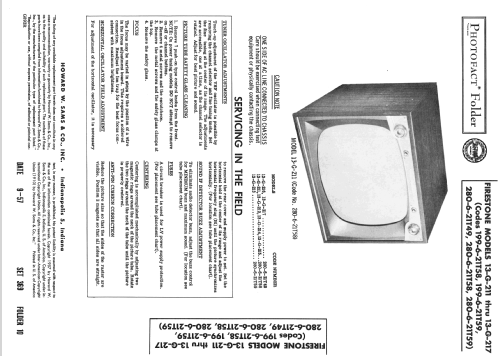

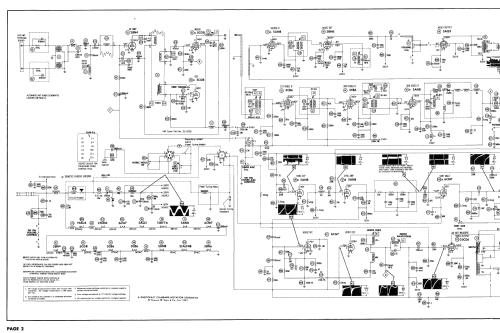

| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Set 369 Folder 10 dated 9-57) |
Model page created by Dirk Taekels. See "Data change" for further contributors.
