13-G-216 Code 280-6-21T49

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2428996) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2428997) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2428998) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2428999) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2429000) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2429001) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2429002) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2429003) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2429004) Television

13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2429005) Television
Use red slider bar for more.
13-G-216 Code 280-6-21T49; Firestone Tire & (ID = 2428996) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: 2BN4 5CG8 3CB6 3CB6 5AN8 12BY7A 5AN8 3BN6 5AQ5 6CM7 6CG7 25CD6 19AU4 1B3GT 21ALP4B
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 13-G-216 Code 280-6-21T49 - Firestone Tire & Rubber Co.
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Firestone model 13-G-216 Code 280-6-21T49 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 211-27255 and picture tube 21ALP4B.
2x selenium rectifier.

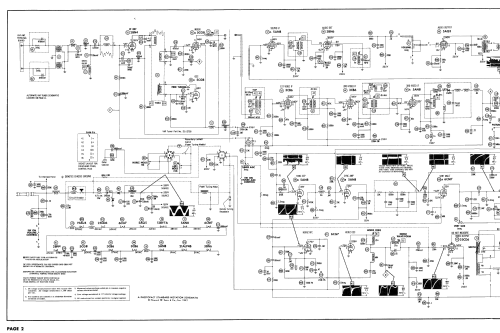

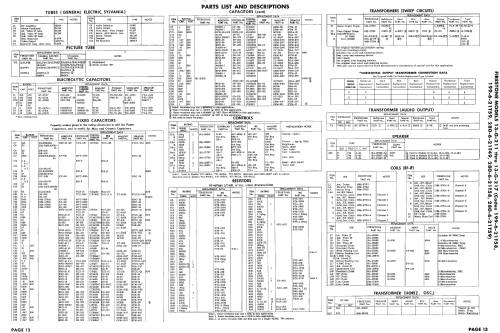

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 369 Folder 10 dated 9-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
