- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1955 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 101519

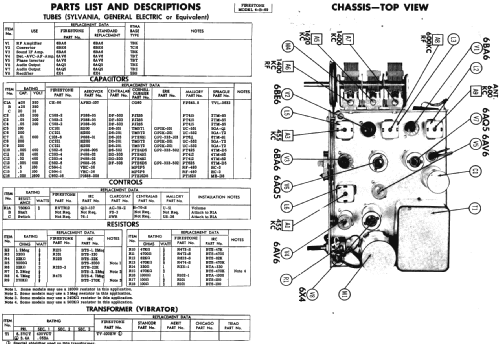

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 4-B-69 - Firestone Tire & Rubber Co.
- Shape
- Chassis only or for «building in»
- Circuit diagram reference
- Photofact Folder, Howard W. SAMS
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
