• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1958 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 361290

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AV6 12AV6 50L6GT 50L6GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 105-125 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: High Fidelity Phonograph 4-H-1 Code 334-8-4P3A - Firestone Tire & Rubber Co.

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Firestone Stewart-Warner De Luxe 4-H-1 record player console. Has a 6 inch woofer, 4 inch mid range, and a 3-1/2 inch tweeter. 4-Speed record changer.



• Net weight (2.2 lb = 1 kg)
• 26 lb 14 oz (26.875 lb) / 12.201 kg

• Literature/Schematics (1)

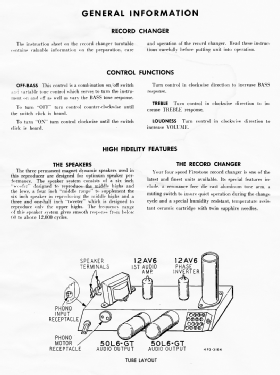

• - - Manufacturers Literature (Firestone Manual No. 4-589)

• Author
• Model page created by Billy Spellings. See "Data change" for further contributors.

• Other Models

• Here you find 491 models, 318 with images and 450 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
