S7398-1 "Beaumont"

S7398-1 'Beaumont' ; Firestone Tire & (ID = 720787) Radio

S7398-1 'Beaumont' ; Firestone Tire & (ID = 2140606) Radio
S7398-1 'Beaumont' ; Firestone Tire & (ID = 2140607) Radio S7398-1 'Beaumont' ; Firestone Tire & (ID = 2140608) Radio
S7398-1 'Beaumont' ; Firestone Tire & (ID = 2140609) Radio S7398-1 'Beaumont' ; Firestone Tire & (ID = 483914) Radio
S7398-1 'Beaumont' ; Firestone Tire & (ID = 483919) Radio S7398-1 'Beaumont' ; Firestone Tire & (ID = 483920) Radio

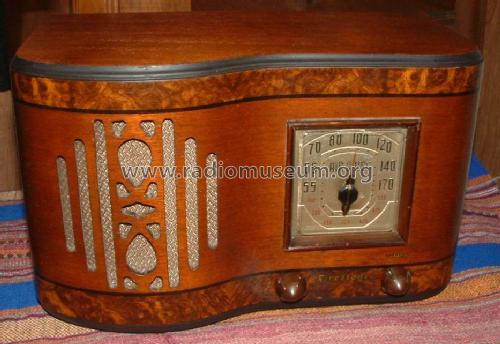

S7398-1 'Beaumont' ; Firestone Tire & (ID = 247030) Radio S7398-1 'Beaumont' ; Firestone Tire & (ID = 268882) Radio
S7398-1 'Beaumont' ; Firestone Tire & (ID = 268883) Radio S7398-1 'Beaumont' ; Firestone Tire & (ID = 483916) Radio
Use red slider bar for more.
S7398-1 'Beaumont' ; Firestone Tire & (ID = 2140607) Radio

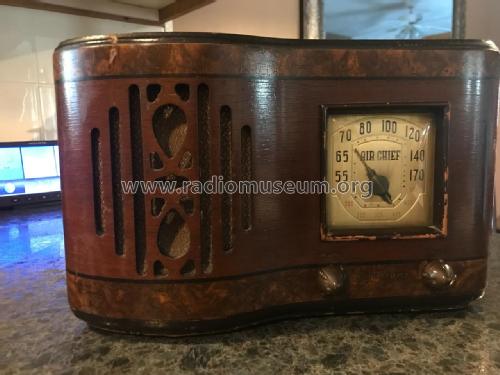

Firestone Tire &: S7398-1 "Beaumont" [Radio] ID = 2140607 1000x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model S7398-1 "Beaumont", Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH):
Replacement grill cloth. Reproduction dial cover and back.

Country:  United States of America (USA)
Manufacturer / Brand:  Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: S7398-1 "Beaumont" - Firestone Tire & Rubber Co.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 325 x 198 x 180 mm / 12.8 x 7.8 x 7.1 inch
Notes Built in loop antenna.
Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Literature/Schematics (1) Riders 13-14
