S7399-2 Code A-371

S7399-2 Code A-371; Firestone Tire & (ID = 722313) Radio

S7399-2 Code A-371; Firestone Tire & (ID = 722314) Radio

S7399-2 Code A-371; Firestone Tire & (ID = 1661220) Radio

S7399-2 Code A-371; Firestone Tire & (ID = 1661222) Radio

S7399-2 Code A-371; Firestone Tire & (ID = 1661226) Radio

S7399-2 Code A-371; Firestone Tire & (ID = 1661228) Radio

S7399-2 Code A-371; Firestone Tire & (ID = 1661229) Radio
S7399-2 Code A-371; Firestone Tire & (ID = 1661191) Radio S7399-2 Code A-371; Firestone Tire & (ID = 1661192) Radio
S7399-2 Code A-371; Firestone Tire & (ID = 1661193) Radio S7399-2 Code A-371; Firestone Tire & (ID = 1661195) Radio
S7399-2 Code A-371; Firestone Tire & (ID = 1661196) Radio S7399-2 Code A-371; Firestone Tire & (ID = 1661197) Radio
S7399-2 Code A-371; Firestone Tire & (ID = 1661198) Radio
Use red slider bar for more.
S7399-2 Code A-371; Firestone Tire & (ID = 1661191) Radio
Firestone Tire &: S7399-2 Code A-371 [Radio] ID = 1661191 609x681
Select picture or schematic to display from thumbnails on the right and click for download.
For model S7399-2 Code A-371, Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6SK7 6SJ7 6J5GT 6SK7 6J5GT 6SQ7 6J5GT 6F6G 6F6G 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: S7399-2 Code A-371 - Firestone Tire & Rubber Co.
Notes Push-button tuning. Built in loop antenna.
Collectors' prices
External source of data Ernst Erb

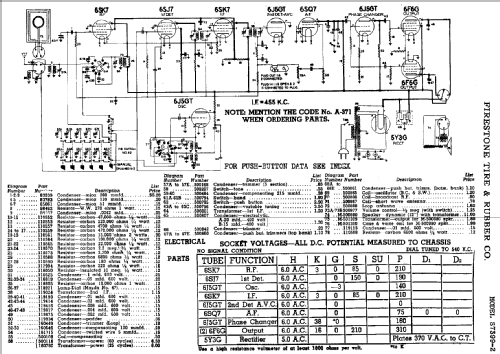

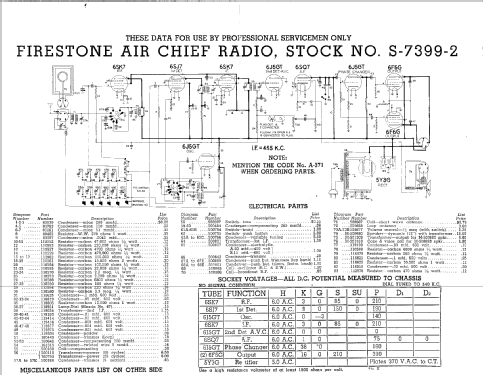

Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Literature/Schematics (1) Riders 13-23, 24
