Air Chief S-7405-8 445 "The Brookside"

Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 724678) Radio

Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 724679) Radio

Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 724685) Radio
Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 1044620) Radio Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 1044623) Radio
Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 1044621) Radio Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 1044622) Radio
Use red slider bar for more.
Air Chief S-7405-8 445 'The Brookside' ; Firestone Tire & (ID = 1044620) Radio

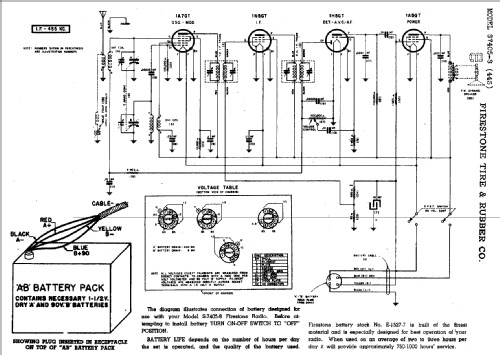

Firestone Tire &: Air Chief S-7405-8 445 "The Brookside" [Radio] ID = 1044620 596x370
Select picture or schematic to display from thumbnails on the right and click for download.
For model Air Chief S-7405-8 445 "The Brookside", Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH):
Image courtesy of Joe Klein Jr.

Country:  United States of America (USA)
Manufacturer / Brand:  Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7GT 1N5GT 1H5GT 1A5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Air Chief S-7405-8 445 "The Brookside" - Firestone Tire & Rubber Co.
Notes Rider's shows the same scheamtic for the Firestone Air Chief models S7405-8 and S7396-2. For both there is also the speaker model P.M. with 6" diameter. This uncommon model was dubbed "the Brookside" for marketing.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Literature/Schematics (1) Riders 13-42, 43
Literature/Schematics (4) Rider's Perpetual, Volume 13 = 1942 and before (Firestone 13-7)
