- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1941 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236144

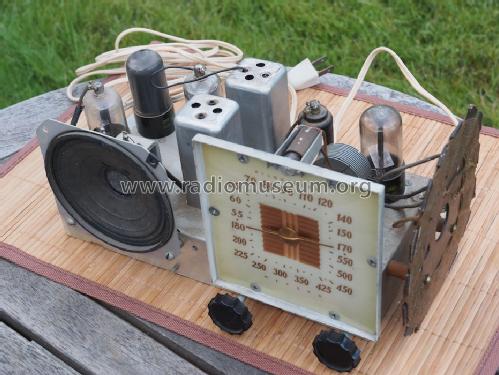

Photo by Rodney Boleyn, WA, USA.

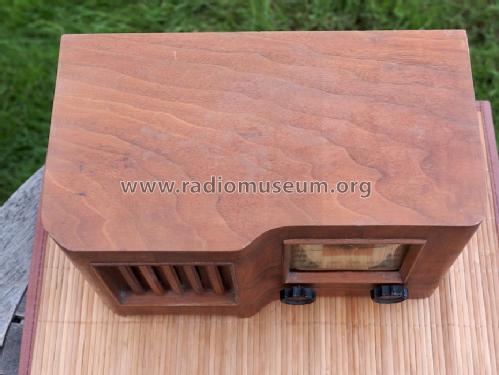

Photo by Rodney Boleyn, WA, USA.
Photo by Rodney Boleyn, WA, USA.
Photo by Rodney Boleyn, WA, USA.
Photo by Rodney Boleyn, WA, USA.
Photo by Rodney Boleyn, WA, USA.
Photo by Rodney Boleyn, WA, USA.
Photo by Rodney Boleyn, WA, USA.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either AC 50 to 60 cycles, 117 or DC 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: S7422-8 - Firestone Tire & Rubber Co.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 7.25 x 6.75 inch / 305 x 184 x 171 mm
- Notes
-
The Firestone S7422-8 is an AC/DC operated 5 tube BC band receiver. The BC band tuning range is 535 to 1720kHz. Has built-in loop antenna which is mounted on the side of the chassis. Uses lamp #47.
The catalog picture of the Firestone S7403-5 looks similar to model S7422-8 and the chassis layout is the same. Thus the schematic and alignment information for model S7403-5 might be useful for model S7422-8, however no manufacturer data has yet been found to substantiate this. (S7403-5 information found in Riders Firestone 12-2).
- Author
- Model page created by Rodney Boleyn. See "Data change" for further contributors.
- Other Models
-
Here you find 472 models, 307 with images and 430 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
Collections
The model S7422-8 is part of the collections of the following members.
