• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40798

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1A7G 1N5G 1N6G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

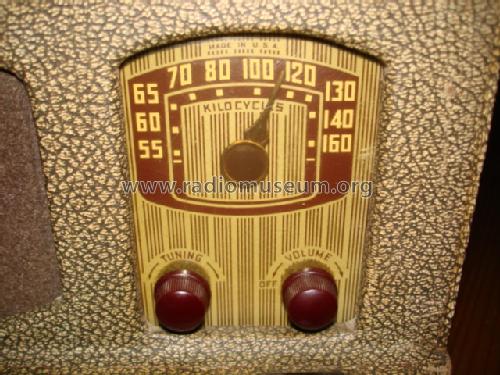

• Model: S7426-9 Ch= R317 - Firestone Tire & Rubber Co.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 240 x 180 mm / 9.1 x 9.4 x 7.1 inch

• Notes
• Built in loop antenna.

• External source of data
• Ernst Erb

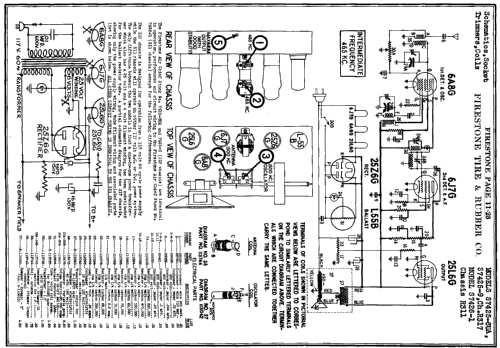

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Other Models

• Here you find 472 models, 307 with images and 430 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
