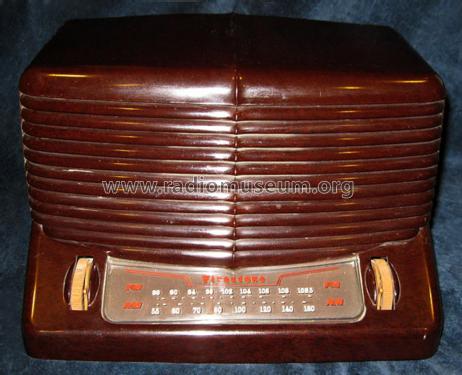

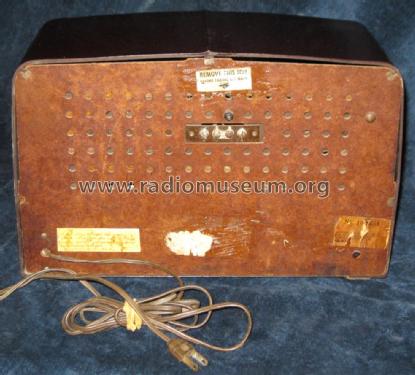

4-A-12 "The Narrator" Code= 213-8-8370

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 332928) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 332930) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 332931) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 332933) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1420769) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1420770) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1420594) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1420595) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1420596) Radio

4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1420597) Radio
4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 389558) Radio 4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 389559) Radio
4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 389560) Radio 4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1815238) Radio
4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1815239) Radio 4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1815240) Radio
4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1815241) Radio 4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1815242) Radio
4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1815243) Radio 4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 1815244) Radio
Use red slider bar for more.
4-A-12 'The Narrator' Code= 213-8-8370; Firestone Tire & (ID = 389558) Radio
Firestone Tire &: 4-A-12 "The Narrator" Code= 213-8-8370 [Radio] ID = 389558 400x266
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4-A-12 'The Narrator' Code= 213-8-8370, Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 12BE6 12BA6 12BA6 19T8 50L6GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 4-A-12 "The Narrator" Code= 213-8-8370 - Firestone Tire & Rubber Co.
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14 x 9 x 9.5 inch / 356 x 229 x 241 mm
Notes Selenium Rectifier
Net weight (2.2 lb = 1 kg) 11.9 lb (11 lb 14.4 oz) / 5.403 kg
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (4819-8 Set 49 Folder 8)
