• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98531

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6BQ7A 6CB6 6BQ7A 6BA6 6U5 6BA6 6AU6 6AU6 6AL5 6BA6 6BE6 6AL5 12AU7 5Y3GT

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

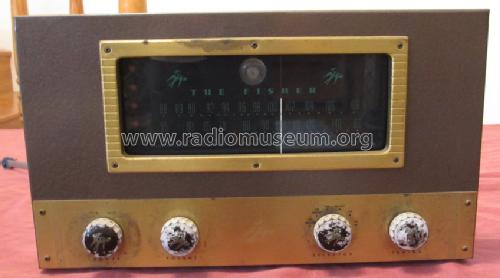

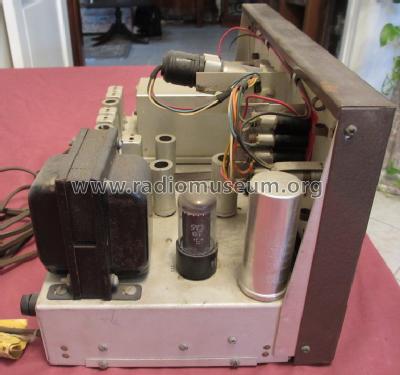

• Model: 50R - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 14.75 x 8.5 x 9.25 inch / 375 x 216 x 235 mm

• Notes

• Fisher model 50R is an AC operated AM-FM superheterodyne tuner for custom installation.
  FM-AM Tuner & Preamplifier, mono. Indoor AM loop and FM dipole.



• Price in first year of sale
• 165.00 USD

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 231, folder 7, dated 2-54)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.

• Other Models

• Here you find 602 models, 514 with images and 209 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fisher Radio; New York (NY)
