80-R

Fisher Radio; New York (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Fisher Radio; New York (NY)

Year
1958/1959

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
149394

Schematics

80-R ; Fisher Radio; New (ID = 694004) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694011) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694012) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694014) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694015) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694016) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694017) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694018) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694019) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694020) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694021) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 694022) Radio — Fisher Radio; New 80-R (3)

80-R ; Fisher Radio; New (ID = 1336902) Radio — Fisher Radio; New 80-R (2)
aus ebay, #380451175419

80-R ; Fisher Radio; New (ID = 580090) Radio — Fisher Radio; New 80-R (2)
Original Prospekt

80-R ; Fisher Radio; New (ID = 1215460) Radio — Fisher Radio; New 80-R (2)

80-R ; Fisher Radio; New (ID = 1215461) Radio — Fisher Radio; New 80-R (2)

80-R ; Fisher Radio; New (ID = 1215462) Radio — Fisher Radio; New 80-R (2)

80-R ; Fisher Radio; New (ID = 1215463) Radio — Fisher Radio; New 80-R (2)

80-R ; Fisher Radio; New (ID = 1215464) Radio — Fisher Radio; New 80-R (2)

80-R ; Fisher Radio; New (ID = 1215465) Radio — Fisher Radio; New 80-R (2)

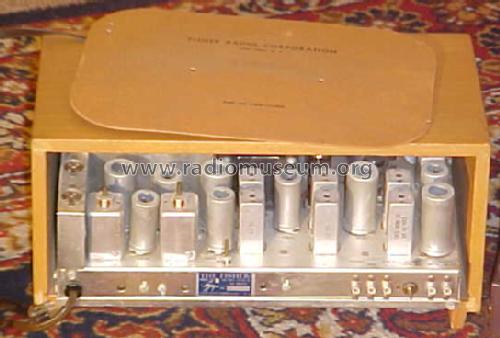

80-R ; Fisher Radio; New (ID = 1336903) Radio — Fisher Radio; New 80-R (2)
aus ebay, #380451175419

80-R ; Fisher Radio; New (ID = 1336904) Radio — Fisher Radio; New 80-R (2)
aus ebay, #380451175419

80-R ; Fisher Radio; New (ID = 1336905) Radio — Fisher Radio; New 80-R (2)
aus ebay, #380451175419

80-R ; Fisher Radio; New (ID = 1766319) Radio — Fisher Radio; New 80-R (2)
aus ebay, #231385547175, Verkäufer mekons123

80-R ; Fisher Radio; New (ID = 1766320) Radio — Fisher Radio; New 80-R (2)
aus ebay, #231385547175, Verkäufer mekons123

80-R ; Fisher Radio; New (ID = 1766321) Radio — Fisher Radio; New 80-R (2)
aus ebay, #231385547175, Verkäufer mekons123

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
13

Valves / Tubes
6BQ7A 6BQ7A 6CB6 6BE6 6BJ6 6BJ6 6U8 6U8 6AU6 6AL5 6C4 6C4 6X4

Main principle
Superhet with RF-stage; ZF/IF 455/10700 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 105-125 Volt

Loudspeaker
- For headphones or amp.

Material
Wooden case

from Radiomuseum.org
Model: 80-R - Fisher Radio; New York NY

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
12.75 x 4 x 8.75 inch / 324 x 102 x 222 mm

Notes
AM/FM-Tuner. Edge-lighted dial glass with 0 - 100 logging scale.
Cabinet available in Blonde or Mahagony.

See also Ampex A423.

Net weight (2.2 lb = 1 kg)
8 kg / 17 lb 9.9 oz (17.621 lb)

Source of data
-- Original prospect or advert

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 7)

Author
Model page created by Franz Scharner. See "Data change" for further contributors.

Other Models
Here you find 587 models, 498 with images and 193 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Fisher Radio; New York (NY)
