• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1977

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 147980

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 150 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: CA2310 - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 150 x 350 mm / 17.3 x 5.9 x 13.8 inch

• Notes
• Stereo-Verstärker mit 2 x 75 Watt Sinus an 8 Ohm.
  6 Eingänge, 3 Ausgänge, 3 LS.

• Source of data

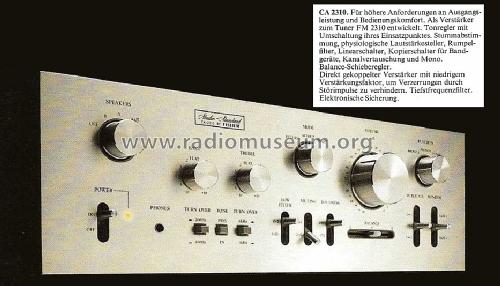

• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
