Closed 3-way Box Speaker SME-135

Fisher Radio; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 350894

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Closed 3-way Box Speaker SME-135 - Fisher Radio; New York NY
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 260 x 430 x 190 mm / 10.2 x 16.9 x 7.5 inch
  • Notes

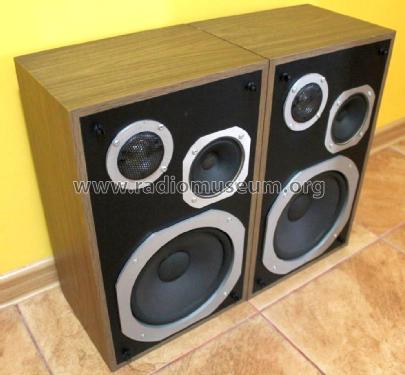

  • Fisher Closed 3-way Box Speaker model SME-135

    1x TT 203mm
    1x MT 76mm
    1x HT 25 mm (dome)
    Crossover frequency: 4000 / 8000 Hz
    Gross volume 21 liters

    Frequency response 60 - 20000 Hz
    Nominal / music load capacity 35 / 50 W

    Nominal impedance 4 - 8 ohms



  • Net weight (2.2 lb = 1 kg)
  • 5.5 kg / 12 lb 1.8 oz (12.115 lb)
  • Price in first year of sale
  • 168.00 DM
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
