DS-153

DS-153 ; Fisher Radio; New (ID = 976062) Speaker-P DS-153 ; Fisher Radio; New (ID = 976061) Speaker-P
DS-153 ; Fisher Radio; New (ID = 976063) Speaker-P DS-153 ; Fisher Radio; New (ID = 976064) Speaker-P
Use red slider bar for more.
DS-153 ; Fisher Radio; New (ID = 976062) Speaker-P
Fisher Radio; New: DS-153 [Speaker-P] ID = 976062 933x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model DS-153, Fisher Radio; New York (NY):

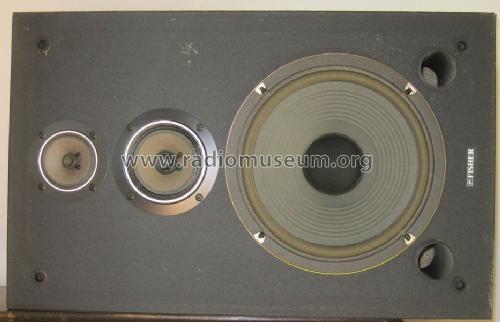

Fisher DS-153 Speaker - Front View with grill removed

Country:  United States of America (USA)
Manufacturer / Brand:  Fisher Radio; New York (NY)
Year: 1983 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: DS-153 - Fisher Radio; New York NY
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 14.75 x 23.5 x 10 inch / 375 x 597 x 254 mm
Notes Woofer: 10 inch
Mid-Range: 5 inch
Tweeter: 3 inch
8 ohm Impedance
Minimum recommended power: 5 Watts
Maximum power: 65 Watts

Model page created by John Kusching. See "Data change" for further contributors.
