• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 147977

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: FM2110 - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 150 x 360 mm / 16.5 x 5.9 x 14.2 inch

• Notes

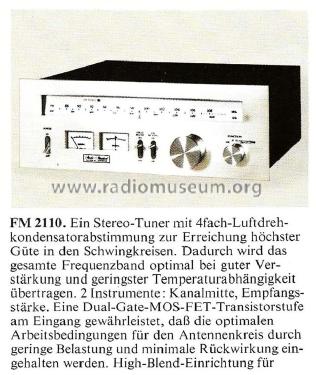

• AM/FM-Stereo-Tuner mit 4fach-Luftdrehkondensatorabstimmung.
  High-Blend-Einrichtung für elektronische Rausch-"Ausblendung".
  MW-Teil mit 2fach-Abstimmung.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
