FM-100B

FM-100B; Fisher Radio; New (ID = 2438604) Radio

FM-100B; Fisher Radio; New (ID = 2438605) Radio
FM-100B; Fisher Radio; New (ID = 655027) Radio FM-100B; Fisher Radio; New (ID = 193487) Radio
FM-100B; Fisher Radio; New (ID = 193486) Radio FM-100B; Fisher Radio; New (ID = 195331) Radio
FM-100B; Fisher Radio; New (ID = 655028) Radio FM-100B; Fisher Radio; New (ID = 655029) Radio
FM-100B; Fisher Radio; New (ID = 655030) Radio FM-100B; Fisher Radio; New (ID = 655031) Radio
FM-100B; Fisher Radio; New (ID = 1019557) Radio FM-100B; Fisher Radio; New (ID = 1788177) Radio
Use red slider bar for more.
FM-100B; Fisher Radio; New (ID = 655027) Radio
Fisher Radio; New: FM-100B [Radio] ID = 655027 720x540

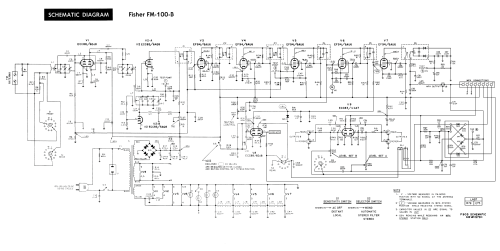

Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-100B, Fisher Radio; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Fisher Radio; New York (NY)
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6DJ8 6DJ8 6AQ8 6AU6 6AU6 6AU6 6AU6 6AU6 12AX7 12AX7 12AT7 12AT7
Main principle Superhet, double/triple conversion; ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 105-120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM-100B - Fisher Radio; New York NY
Material Wooden case
Shape Rack
Dimensions (WHD) 480 x 156 x 310 mm / 18.9 x 6.1 x 12.2 inch
Notes UKW-Multiplex-Stereo-Empfänger.
6 ZF-Stufen, 4 Begrenzer.
12 Röhren, 13 Dioden.
Vertrieb über Fa. Elac.
Price in first year of sale 1'680.00 DM
Source of data - - Data from my own collection
Mentioned in HiFi Jahrbuch 1963/64 Seite 88

Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
