• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98536

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6BQ7A 6BQ7A 6CB6 6BH6 6BH6 6AU6 6AU6 6AL5 12AU7 12AU7 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz; 1 AF stage(s)

• Tuned circuits
• 12 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

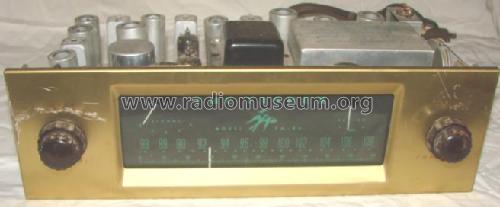

• Model: Tuner FM-80 - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 12.75 x 4.2 x 7.3 inch / 324 x 107 x 185 mm

• Notes
• Professional FM tuner. Optional wooden cabinet in mahogany or blonde: 14.95 USD.

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Price in first year of sale
• 140.00 $

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Date 5-55, Folder 277, Set 5)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
