• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1965 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 195293

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: KS-1A - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 24 x 18 x 5.75 inch / 610 x 457 x 146 mm

• Notes
• Frequency Response: 40 to 18,500 cps
  Bass Speaker: 10 inch, Mid-Range: 5 inch, Treble: 3 inch
  Crossover Frequencies: 1,400 and 2,500 cps
  Cabinet: Available in Walnut or Birch.

• Net weight (2.2 lb = 1 kg)
• 16 lb (16 lb 0 oz) / 7.264 kg

• Source of data

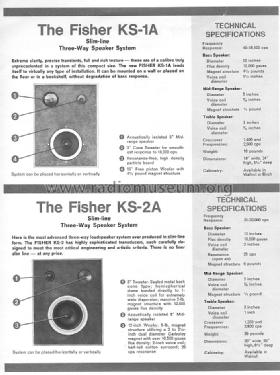

• -- Original prospect or advert

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
