Stereo Amplifier CA-M300

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829411) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829412) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829413) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829414) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829415) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829417) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829418) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829419) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829420) Ampl/Mixer

Stereo Amplifier CA-M300; Fisher Radio; New (ID = 829421) Ampl/Mixer
Stereo Amplifier CA-M300; Fisher Radio; New (ID = 551907) Ampl/Mixer Stereo Amplifier CA-M300; Fisher Radio; New (ID = 551895) Ampl/Mixer
Stereo Amplifier CA-M300; Fisher Radio; New (ID = 1748367) Ampl/Mixer
Use red slider bar for more.
Stereo Amplifier CA-M300; Fisher Radio; New (ID = 551907) Ampl/Mixer
Fisher Radio; New: Stereo Amplifier CA-M300 [Ampl/Mixer] ID = 551907 933x161

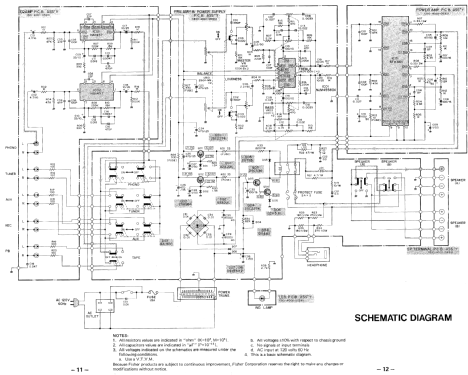

Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier CA-M300, Fisher Radio; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Fisher Radio; New York (NY)
Year: 1980 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 50 W (unknown quality)
from Radiomuseum.org Model: Stereo Amplifier CA-M300 - Fisher Radio; New York NY
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 300 x 45 x 210 mm / 11.8 x 1.8 x 8.3 inch
Notes Klirrfaktor 0,02%, 2×25 W sinus.
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Fisher Radio; New York (NY)
Here you find 554 models, 455 with images and 186 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
