• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1962 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 100959

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes

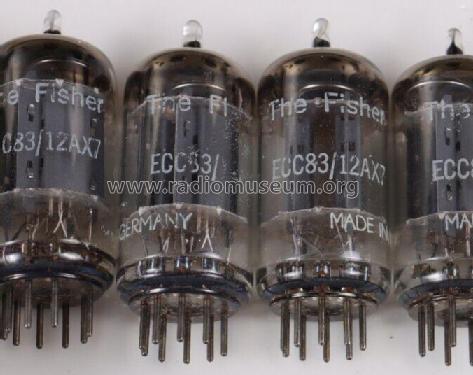

• 12AX7 12AX7 12AX7 12AX7 12AX7 12AX7 7868 7868 7868 7868

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105–120; 210–240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Master Control Amplifier X-100B - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 15.125 x 4.8125 x 11.875 inch / 384 x 122 x 302 mm

• Notes

• Fisher Stereo Master Control Amplifier Model X-100-B.
  Rated Music Power Output (IHFM) Both Channels 50 Watts
  THD 0,5%
  Frequency Response 20 - 20000Hz +/-1dB
  Direct Tape Monitor
  Earphone Jack on Front Panel
  High Filter
  Available Cabinetry:
  Walnut - Model 20-UW
  Mahogany - Model 10-UM
  or Metal Cabinet in simulated leather - Model MC-2




• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
