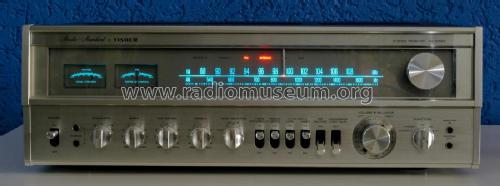

Stereo Receiver RS-1056E

Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2408192) Ampl/Mixer Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2408193) Ampl/Mixer
Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2408194) Ampl/Mixer Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2408195) Ampl/Mixer
Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2408196) Ampl/Mixer Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2408197) Ampl/Mixer
Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2410675) Ampl/Mixer
Use red slider bar for more.
Stereo Receiver RS-1056E; Fisher Radio; New (ID = 2408192) Ampl/Mixer
Fisher Radio; New: Stereo Receiver RS-1056E [Ampl/Mixer] ID = 2408192 1400x574
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver RS-1056E, Fisher Radio; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Fisher Radio; New York (NY)
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 50 Hz; 110 or 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 136 W (undistorted)
from Radiomuseum.org Model: Stereo Receiver RS-1056E - Fisher Radio; New York NY
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 535 x 190 x 315 mm / 21.1 x 7.5 x 12.4 inch
Notes
  • RMS power output: 68+68 W
  • Audio frequency: 20Hz-20KHz
  • Total Harmonic Distortion: 0.1%
  • Max power consumption:280W
  • FM tuner sensitivity: 1.7uV
  • AM tuner sensitivity: 300uV

Made in Japan

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)

Model page created by Giuseppe Feniello. See "Data change" for further contributors.
