• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1959 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135135

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• ECC85 ECC85 EF94 EF94 EM840 EM84 EF94 EF94 EF86 6BJ6 EK90 6BJ6 EBF89 EF86 EZ81

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

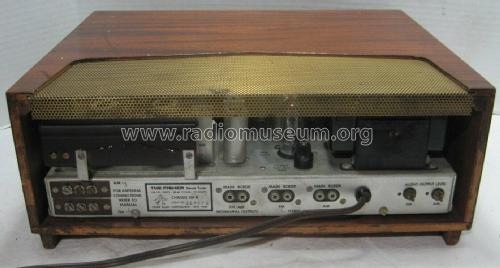

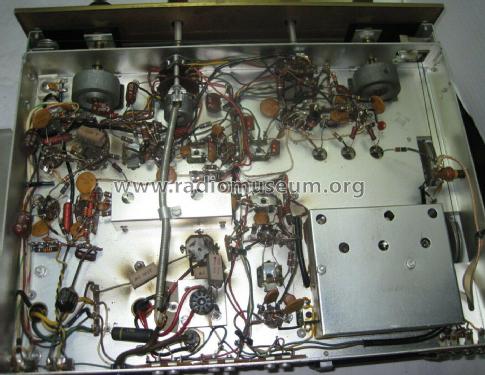

• Model: 101-R Stereo Tuner - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 15.125 x 4.8 x 13 inch / 384 x 122 x 330 mm

• Notes

• Fisher 101-R,  Tuner with independent AM and FM sections for (now obsolete) "Simulcast" AM-FM-Stereo.
  FM Multiplex output; separate "Micro-Ray" tuning indicators, bandwidth selection,
  70 W power consumption.

  See also Fisher 4000-R.

• Net weight (2.2 lb = 1 kg)
• 20 lb 0 oz (20 lb) / 9.080 kg

• Price in first year of sale
• 23.00 $

• Literature/Schematics (1)

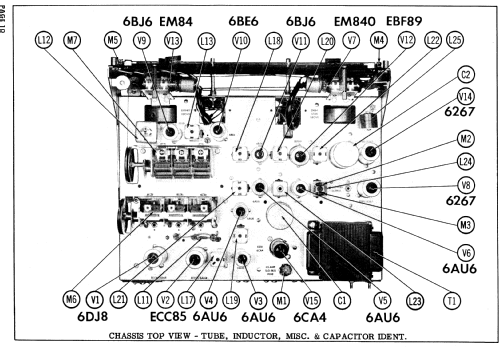

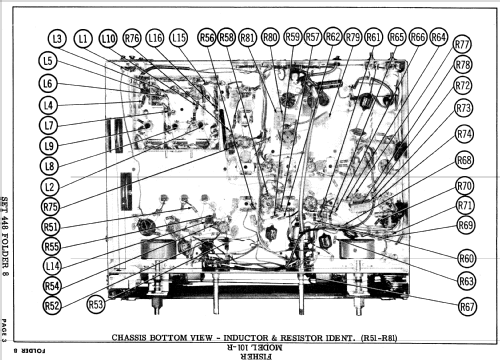

• Photofact Folder, Howard W. SAMS (Date 7-59, Set 448, Folder 8)

• Literature/Schematics (2)
• Radio Shack Catalog (1959; page 17)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
