• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1965 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 132060

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

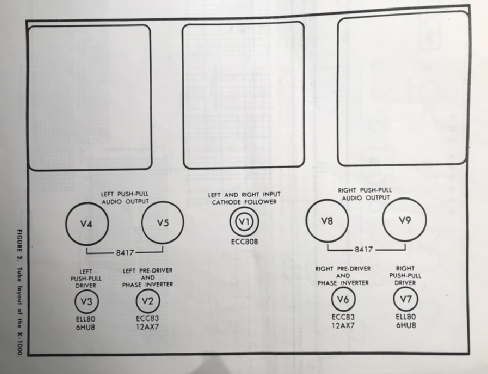

• ECC808 12AX7 12AX7 ELL80 ELL80 8417 8417 8417 8417

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

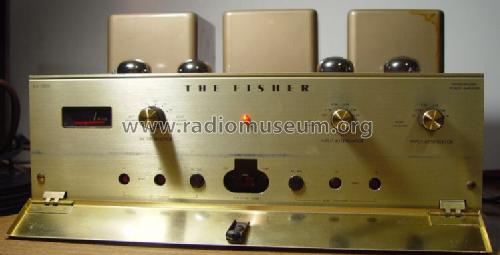

• Model: Stereophonic Power Amplifier SA-1000 - Fisher Radio; New York NY

• Shape
• Tablemodel, low profile (big size).

• Notes
• with bias meter.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
