• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78554

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6DJ8 6AQ8 6AU6 6AU6 6AU6 6AU6 6BN6 6AU6 6BA6 6BE6 6BA6 6DC8 6EV7 6AV6 12AX7 12AX7

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 9 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

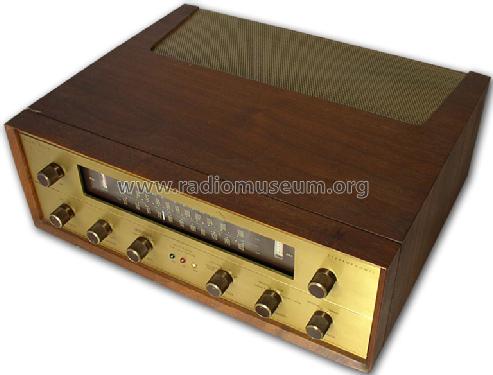

• Model: Wideband FM-AM Tuner 202-R - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Notes

• Mono tuner, with multiplex output; can receive simultaneous FM and AM broadcasts for FM-AM stereo. FM stereo with adapter MPX-100.

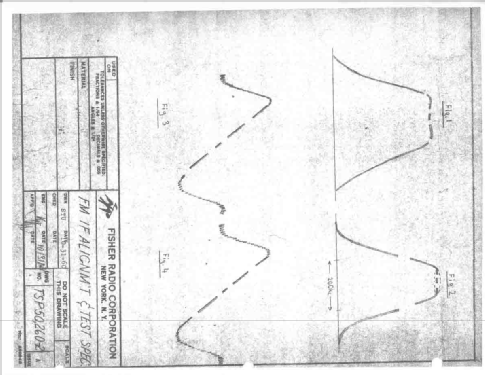

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 560 folder 8 date 12-61)

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
