TR-1

TR-1; Fisher Radio; New (ID = 2554086) Ampl/Mixer

TR-1; Fisher Radio; New (ID = 2554087) Ampl/Mixer

TR-1; Fisher Radio; New (ID = 2554088) Ampl/Mixer

TR-1; Fisher Radio; New (ID = 2554089) Ampl/Mixer
TR-1; Fisher Radio; New (ID = 2554085) Ampl/Mixer
Use red slider bar for more.
TR-1; Fisher Radio; New (ID = 2554085) Ampl/Mixer
Fisher Radio; New: TR-1 [Ampl/Mixer] ID = 2554085 1272x1002
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-1, Fisher Radio; New York (NY):

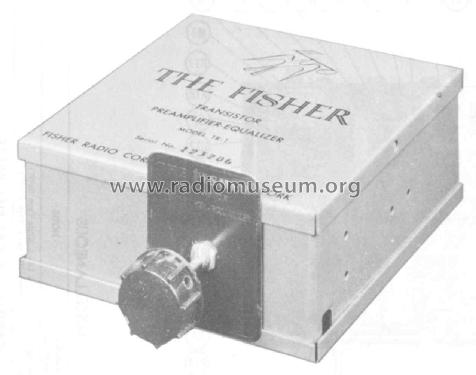

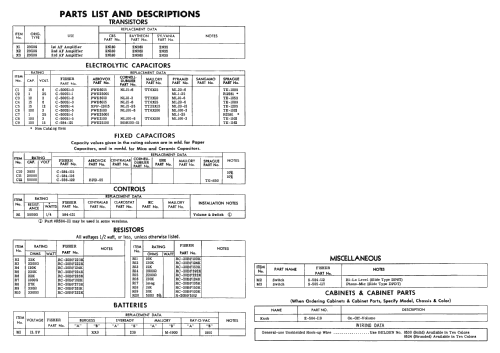

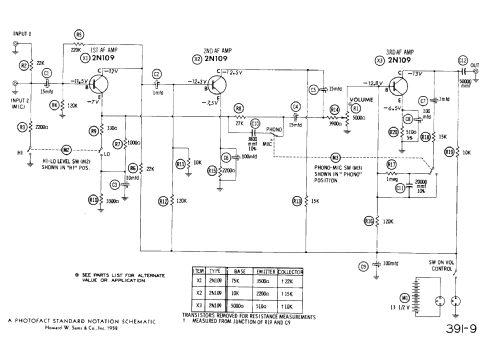

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Fisher Radio; New York (NY)
Year: 1958 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 3: 2N109 2N109 2N109
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Dry Batteries / 13.5 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TR-1 - Fisher Radio; New York NY
Material Metal case
Shape Book-shelf unit.
Notes

Fisher model TR-1 is a battery operated 2 channel transistorized preamplifier.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 391 Folder 9 dated 3-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.
