XP-5

Fisher Radio; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 195285

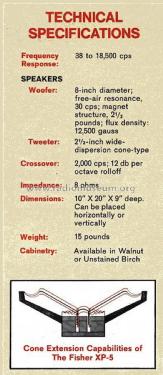

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: XP-5 - Fisher Radio; New York NY
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 20 x 10 x 9 inch / 508 x 254 x 229 mm
  • Notes

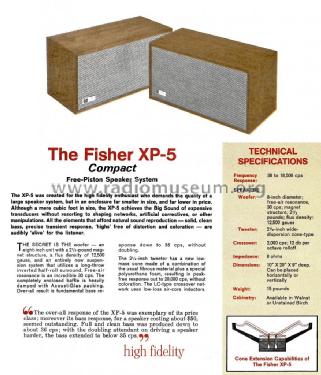

  • Fisher Free-Piston 2-Way Speaker System Model XP-5
    Frequency Response 38 to 18,5000 cps
    Woofer: 8 inch, Tweeter:  2.5 inch
    Crossover: 2,000cps, 12dB/octave
    Impedance: 8 ohms
    Cabinet available in
    Walnut  USD 54,50 or
    Unstained Birch USD 49,50

  • Net weight (2.2 lb = 1 kg)
  • 15 lb (15 lb 0 oz) / 6.810 kg
  • Price in first year of sale
  • 50.00 $
  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • Fisher Speaker Systems Technical Fact Booklet 1965
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
