• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1965 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 195286

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: XP-6 - Fisher Radio; New York NY

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 23 x 13 x 10.5 inch / 584 x 330 x 267 mm

• Notes
• Frequency Response: 35 to 20,000 cps
  Bass Speaker: 10 inch, Mid-Range: 5 inch, Treble: 1.5 inch
  Crossover Frequencies: 300 and 2500 cps


• Net weight (2.2 lb = 1 kg)
• 35 lb (35 lb 0 oz) / 15.890 kg

• Literature/Schematics (1)

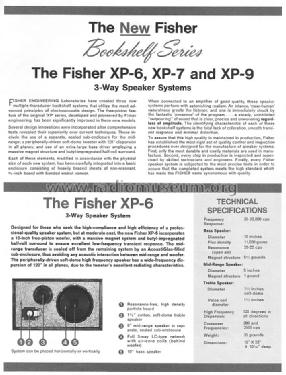

• Fisher Speaker Systems Technical Fact Booklet 1965
