• Country
• Canada

• Manufacturer / Brand
• Electrical Products Mfg. Co. Ltd.; later Fleetwood Corporation; Montreal

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246075

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BE6 6DC8 6AU6 6AU6 6AQ5 6AQ5 6CA4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 4060 Ch= 2053 - Electrical Products Mfg. Co.

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 37 x 30.25 x 15 inch / 940 x 768 x 381 mm

• Notes

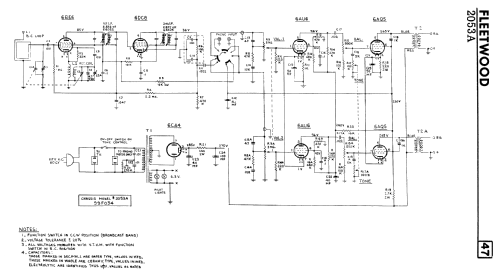

• Height includes legs to the highest point (drawing illustrates full dimensions).  Chassis number missing from unit, but diagram and schematic match that of 2053 shown under Fleetwood Model 4068.  Capacitors are dated September 1960 - implying the unit is from late 1960/1961.
  Record changer is BSR UA14.  Cartridge uses BSR TC8G / TC8RS.

• Mentioned in
• Radio College of Canada (RCC) (Chassis 2053 in RCC manual vol. 53 (1961))

• Author
• Model page created by David Clarke. See "Data change" for further contributors.
