Globe Radio - Six Transistor NTR-6G

Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 61580) Radio Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 79138) Radio
Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 155801) Radio Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 155803) Radio
Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 195267) Radio Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 195268) Radio
Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 195269) Radio Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 631986) Radio
Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 631987) Radio Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 631988) Radio
Use red slider bar for more.
Globe Radio - Six Transistor NTR-6G; Fleetwood brand? (ID = 61580) Radio
Fleetwood brand?: Globe Radio - Six Transistor NTR-6G [Radio] ID = 61580 519x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Globe Radio - Six Transistor NTR-6G, Fleetwood (brand?)

Country:  Japan
Manufacturer / Brand:  Fleetwood (brand?)
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2S30 2S31 2S31 2S32 2S33 2S33
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA: 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Globe Radio - Six Transistor NTR-6G - Fleetwood brand?
Material Various materials
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 145 x 200 x 145 mm / 5.7 x 7.9 x 5.7 inch
Notes

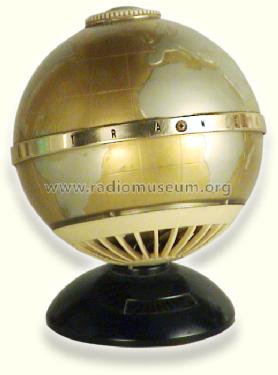

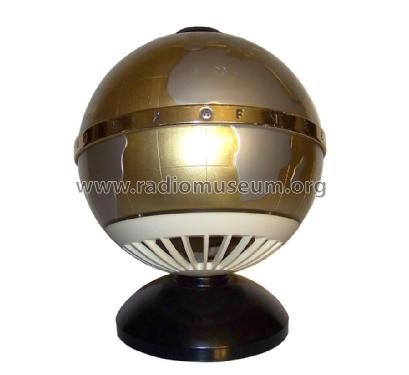

Globe Radio - Six Transistor  (Fleetwood) has a shape like a World Bowl. See similar products from other makers like Marc Globe and Raleigh Globe.

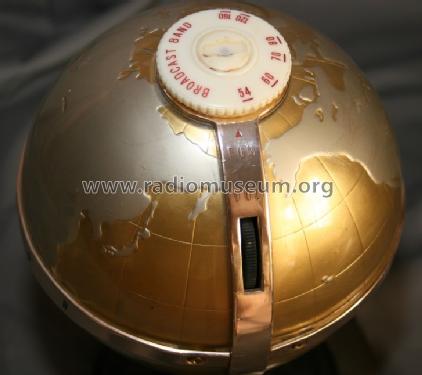

Civil Defense (CD) markings on dial ( at 640 & 1240 kHz )
Material : Base black Bakelite, housing Plexiglas with continents molded inside the globe, reels gold plated aluminium.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
External source of data Sammlung E. Erb
Mentioned in Guida Pratica Transistor Radios (page 59)
Literature/Schematics (1) Photofact TSM Transistor Radio Series SAMS (Vol. 12)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Fleetwood (brand?)
Here you find 15 models, 12 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
