• Country
• United States of America (USA)

• Manufacturer / Brand
• Fluke, John, Mfg. Co. Inc.; Everett (WA)

• Year
• 1987 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 279206

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 115; 120; 200; 220; 230; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

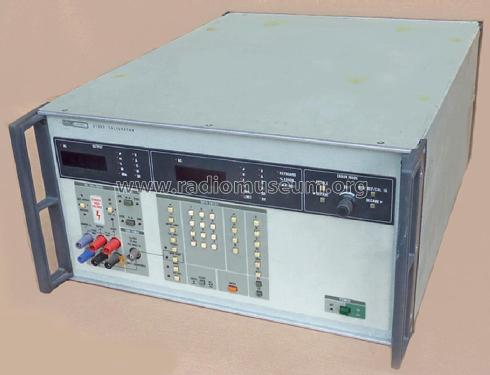

• Model: Calibrator 5100B - Fluke, John, Mfg. Co. Inc.;

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 432 x 222 x 603 mm / 17 x 8.7 x 23.7 inch

• Notes

• Fluke 5100B zur  Kalibrierung von bis zu 4 1/2 stelligen Multimetern.

  DC Voltage: 0-1100V,       Accuracies: 0,005%
  AC Voltage: 0-1100V,       Accuracies: 0,05%
  DC Current: 200µA-2A,    Accuracies: 0,025%
  AC Current: 200µA-2A,     Accuracies: 0,07%
  Resistance: 1Ω-10MΩ,     Accuracies: 0,005%



• Net weight (2.2 lb = 1 kg)
• 32.7 kg / 72 lb 0.4 oz (72.026 lb)

• Price in first year of sale
• 38,970.00 DM

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
