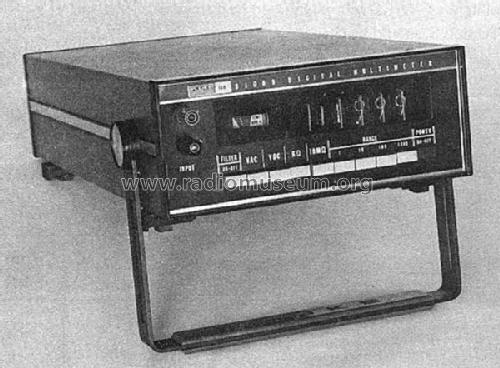

Digital Multimeter 8100B
Fluke, John, Mfg. Co. Inc.; Everett (WA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fluke, John, Mfg. Co. Inc.; Everett (WA)
- Year
- 1972
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 288039
from service documentation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Multimeter 8100B - Fluke, John, Mfg. Co. Inc.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Model 8100B is a model 8100A in a differently styled plastic casing and without the GUARD terminal. The 115/230 volt slide switch is relocated in 8100B.
This device needs a mains cable with PH-163 connector.
- Mentioned in
- -- Original-techn. papers.
