Fluke, John, Mfg. Co: Multimeter 8030A [Equipment] ID = 292593 933x615

Select picture or schematic to display from thumbnails on the right and click for download.

For model Multimeter 8030A, Fluke, John, Mfg. Co. Inc.; Everett (WA)

Country:

United States of America (USA)

Manufacturer / Brand:

Fluke, John, Mfg. Co. Inc.; Everett (WA)

Year: 1976

Category: Service- or Lab Equipment

Semiconductors (the count is only for transistors)

Semiconductors present.

Wave bands	- without
Details
Power type and voltage	Batteries / addl. power jack / C: 4 x 1.5 / DC 5.8 Volt
Loudspeaker	- - No sound reproduction output.
Power out
from Radiomuseum.org	Model: Multimeter 8030A - Fluke, John, Mfg. Co. Inc.;
Material	Plastics (no bakelite or catalin)
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	125 x 63 x 150 mm / 4.9 x 2.5 x 5.9 inch

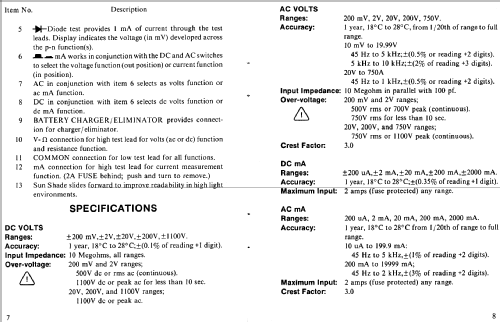

Notes	The Fluke 8030A is a battery or ext. DC operated 3¹/₂ digit True RMS Digital Multimeter. ACV; DCV: 200 mV; 2 V; 20 V; 200 V; 1100 VDC / 750 VAC. ACA; DCA: 0,2 mA; 2 mA; 20 mA; 200 mA; 2 A. R: 200 Ω; 2 kΩ; 20 kΩ; 200 kΩ; 2000 kΩ. True RMS, diode test, automatic sign detection. Accessories: Battery Charger/Eliminator, output 5.8 V DC @ 0.15 A DC, models A81-115 for 115 V AC A81-230-1 for 230 V AC
Net weight (2.2 lb = 1 kg)	0.6 kg / 1 lb 5.1 oz (1.322 lb)
Mentioned in	- - Manufacturers Literature

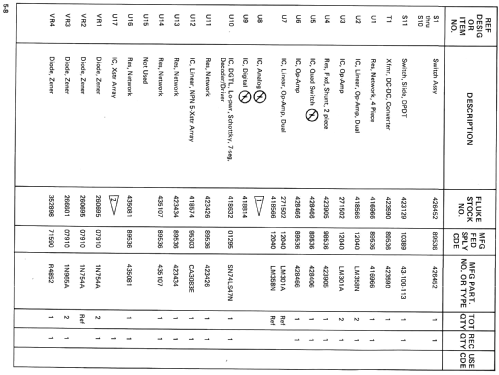

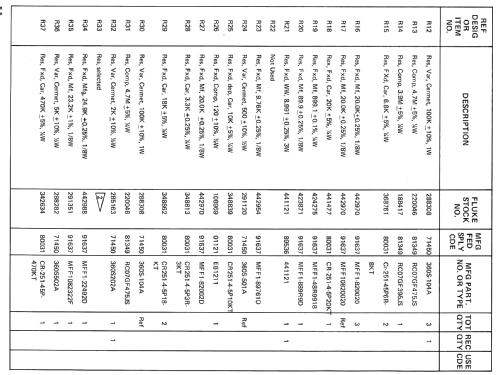

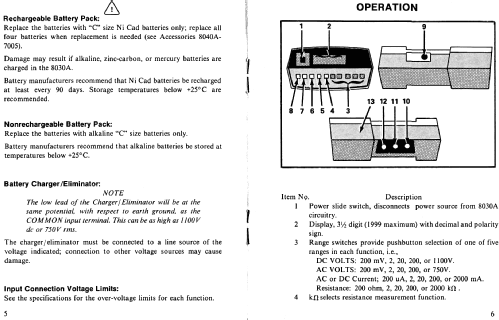

Literature/Schematics (1)	-- Original-techn. papers.

Model page created by a member from D. See "Data change" for further contributors.
