• Country
• United States of America (USA)

• Manufacturer / Brand
• Fluke, John, Mfg. Co. Inc.; Everett (WA)

• Year
• 1968

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 138970

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• 2N3638 2N3391

• Power type and voltage
• Dry Batteries / 2 × 6.75 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Reference Voltage Divider 750A - Fluke, John, Mfg. Co. Inc.;

• Shape
• Rack

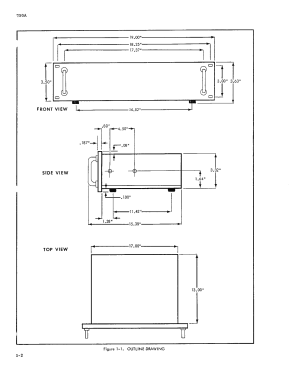

• Dimensions (WHD)
• 482 x 88 x 330 mm / 19 x 3.5 x 13 inch

• Notes
• Das Gerät Fluke 750A ist ein extrem genauer und stabiler Referenz-Spannungsteiler zur Kalibrierung von Präzisions-DC-Voltmetern. Die beiden 6,75-V-Batterien sind Mercury-Normalelemente (Quecksilber). Ausführung: 19"-Einschubtechnik.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Alexander Küffer. See "Data change" for further contributors.
