True RMS Digital Multimeter 115

Fluke, John, Mfg. Co. Inc.; Everett (WA)

Data
Forum
Pictures
Collections

  • Year
  • 2014 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 330485

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / PP3: 1 x 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: True RMS Digital Multimeter 115 - Fluke, John, Mfg. Co. Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 3.25 x 6.5 x 1.5 inch / 83 x 165 x 38 mm
  • Notes

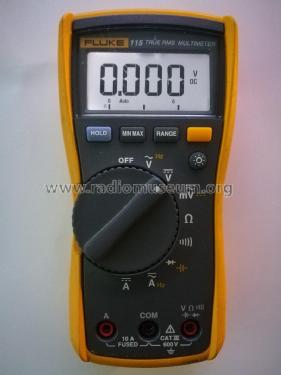

  • Digital LCD multimeter with bargraph. With soft impact shell.

    Measures the True RMS voltage as well as currents with 6000 count, resistance, continuity, frequency, and capacitance.

    Features

    • Measures resistance, continuity, frequency, capacitance, and diode test
    • Measures 10 A (20 A overload for 30 seconds)
    • Large white LED backlight to work in poorly lit areas
    • Compact ergonomic design for one-handed operation
    • Compatible with optional magnetic hanger (ToolPak™)
    • True RMS for accurate measurements on non-linear loads
    • Min/max/average with elapsed time to record signal fluctuations
    • CAT III 600 V safety rated
    • Measures AC and DC voltage to 600 V
  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
