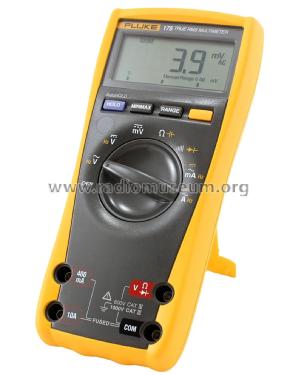

True RMS Digital Multimeter 175

• Country
• United States of America (USA)

• Manufacturer / Brand
• Fluke, John, Mfg. Co. Inc.; Everett (WA)

• Year
• 2007

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 258437

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Power type and voltage
• Dry Batteries / PP3: 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: True RMS Digital Multimeter 175 - Fluke, John, Mfg. Co. Inc.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 43 x 90 x 185 mm / 1.7 x 3.5 x 7.3 inch

• Net weight (2.2 lb = 1 kg)
• 0.420 kg / 0 lb 14.8 oz (0.925 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
