True RMS Multimeter 179

True RMS Multimeter 179; Fluke, John, Mfg. Co (ID = 2091489) Equipment True RMS Multimeter 179; Fluke, John, Mfg. Co (ID = 2091490) Equipment
True RMS Multimeter 179; Fluke, John, Mfg. Co (ID = 2091491) Equipment True RMS Multimeter 179; Fluke, John, Mfg. Co (ID = 2091492) Equipment
True RMS Multimeter 179; Fluke, John, Mfg. Co (ID = 2091493) Equipment
Use red slider bar for more.

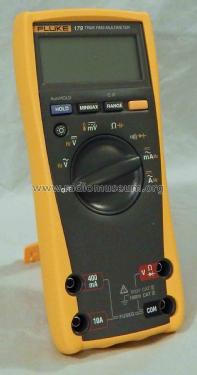

True RMS Multimeter 179; Fluke, John, Mfg. Co (ID = 2091489) Equipment
Fluke, John, Mfg. Co: True RMS Multimeter 179 [Equipment] ID = 2091489 1105x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model True RMS Multimeter 179, Fluke, John, Mfg. Co. Inc.; Everett (WA)

Country:  United States of America (USA)
Manufacturer / Brand:  Fluke, John, Mfg. Co. Inc.; Everett (WA)
Year: 2000 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: True RMS Multimeter 179 - Fluke, John, Mfg. Co. Inc.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 90 x 185 x 43 mm / 3.5 x 7.3 x 1.7 inch
Notes

The Fluke 179 True RMS Multimeter is an auto-ranging DMM, measuring AC and DC Volts, DC mV, Frequency, Resistance, Capacitance, Amerage to mA, Continuity, Temperature, and Diodes. Other features include backlight, auto-hold, min/max. Rated at CAT III and IV. Made in USA.

The Fluke 179 came in various packages with different sets of tests leads and accessories for differing markets, i.e., electrical, electronics, etc.

Net weight (2.2 lb = 1 kg) 0.420 kg / 0 lb 14.8 oz (0.925 lb)
Price in first year of sale 269.95 USD

Model page created by Wayne Childress. See "Data change" for further contributors.
