Super FNR 7 (7A, 7~) 2A5

• Country
• Belgium

• Manufacturer / Brand
• FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel

• Year
• 1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76230

• Picture
• Schematics

Previous Next

Previous Next

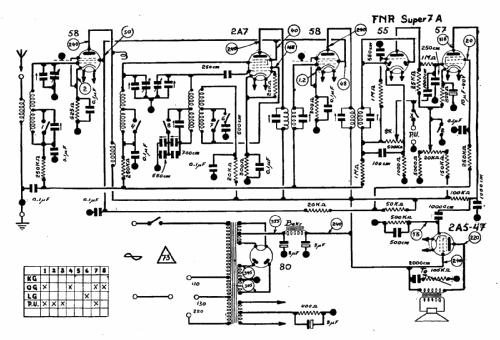

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 58 2A7 58 55 57 2A5 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super FNR 7 [2A5] - FNR Fabrique Nationale

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 460 x 500 x 325 mm / 18.1 x 19.7 x 12.8 inch

• Notes

• Lampe BF 2A5. Voir aussi modèle avec lampe 47.

• Price in first year of sale
• 2,350.00 BFr

• Mentioned in
• Radio Schema's, Deel II (Deel 1, p.95)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Albert Aerts †. See "Data change" for further contributors.

• Other Models

• Here you find 55 models, 42 with images and 37 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
