Bildmustergenerator ELO 5/1983

Franzis Verlag, München

  • Year
  • 1983
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 319113

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Bildmustergenerator ELO 5/1983 - Franzis Verlag, München
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 170 x 90 x 140 mm / 6.7 x 3.5 x 5.5 inch
  • Notes
  • Bildmustergenerator mit IC ZNA234E:

    HF Modulator für UHF-Kanal 36

    7 Bildmuster

    • weißes Raster
    • Grautreppe
    • horizontale Linien

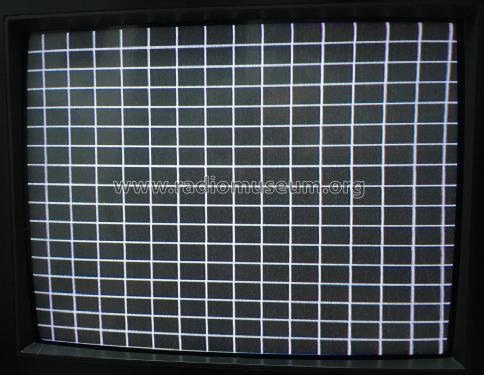

    • Gittermuster
    • Punktraster
    • verzikale Linien
    • scwarzes Raster





  • Price in first year of sale
  • 55.00 DM
  • Mentioned in
  • -- Original-techn. papers. (ELO 5/1983 Seite 66-68)
  • Author
  • Model page created by Ralf Rehbein. See "Data change" for further contributors.
