• Country
• United States of America (USA)

• Manufacturer / Brand
• Freshman Co. Inc., Chas.., (Polydyne); New York

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41047

• • Brand: C.A.Earl

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

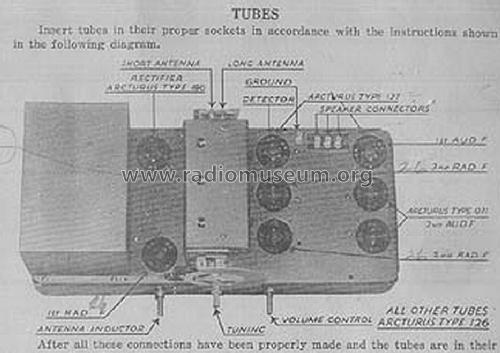

• Valves / Tubes
• 226 226 226 227 227 171A 171A 280

• Main principle
• TRF without regeneration; Neutrodyne

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Earl 22 [AC] - Freshman Co. Inc., Chas..,

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• One dial (primary tuning control knob); Push-pull af output.

• Price in first year of sale
• 104.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)

• Literature/Schematics (2)
• Rider's Perpetual, Volume 2 = 1932 and before
