• Year
  • 1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 205864
    • Brand: C.A.Earl

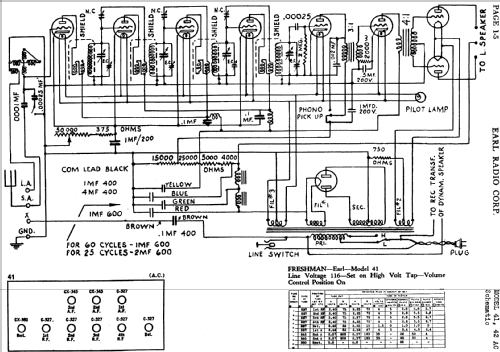

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • TRF without regeneration; Neutrodyne
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • from Radiomuseum.org
  • Model: Earl 42 - Freshman Co. Inc., Chas..,
  • Notes
  • One dial (primary tuning control knob); Push-pull af output; Phono input.
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
