• Country
• United States of America (USA)

• Manufacturer / Brand
• Freshman Co. Inc., Chas.., (Polydyne); New York

• Year
• 1924/1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202272

• • Brand: C.A.Earl

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UV201A UV201A UV201A UV201A UV201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

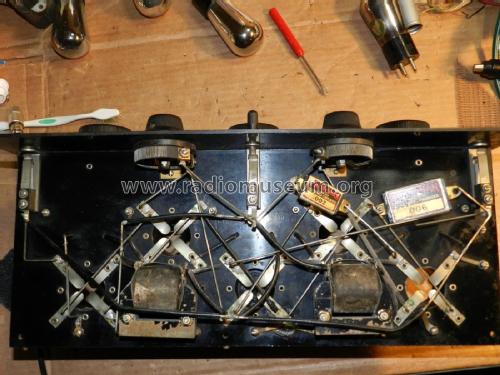

• Model: Masterpiece 5F4 dial knobs [no C-battery] - Freshman Co. Inc., Chas..,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 20.75 x 10 x 12 inch / 527 x 254 x 305 mm

• Notes
• Three tuning knobs;

• Price in first year of sale
• 60.00 USD

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
