Sammler 2B38
Friemann & Wolf, Zwickau (FRIWO)
- Country
- Germany
- Manufacturer / Brand
- Friemann & Wolf, Zwickau (FRIWO)
- Year
- 1937 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 117931
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Is a battery or storage battery / 2 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sammler 2B38 - Friemann & Wolf, Zwickau FRIWO
- Dimensions (WHD)
- 160 x 165 x 90 mm / 6.3 x 6.5 x 3.5 inch
- Notes
-

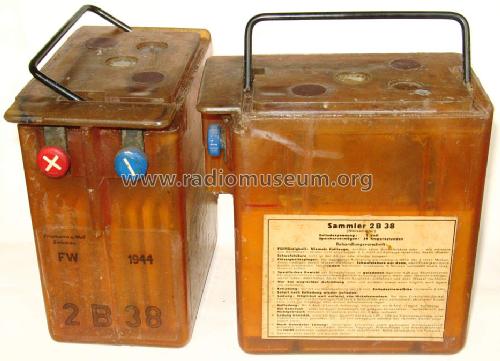

Einzelliger Bleiakku für die Röhrenheizung im Zelluloseacetat-Gehäuse (Mipolam), hauptsächlich für den militärischen Bereich (Wehrmacht). 2B38 = 2 V - Blei - 38 Ah.
Von verschiedenen Firmen gefertigt (siehe pdf-Dokument).
- Net weight (2.2 lb = 1 kg)
- 4.2 kg / 9 lb 4 oz (9.251 lb)
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
