• Year
  • 1975–1985 ??
  • Category
  • Military Equipment (not Re, Tr or RXT)
  • Radiomuseum.org ID
  • 75918

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Power type and voltage
  • Dry Batteries / 2x1,5(UM1) Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Metal case
  • from Radiomuseum.org

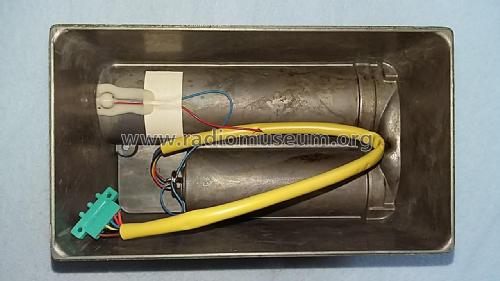

  • Model: Strahlungsmeßgerät SV 500 - Frieseke & Höpfner, Babelsberg
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 160 x 107 x 92 mm / 6.3 x 4.2 x 3.6 inch
  • Notes
  • Hochempfindliches Dosisleistungs-Meßgerät, diverse Beta- und Gamma-Bereiche, einstellbare Warnschwelle. Externe Sonde mit Zählrohr, Tragetasche etc. als Zubehör. Bundeswehr, Koninklijke Landmacht (NL).
  • Net weight (2.2 lb = 1 kg)
  • 1.7 kg / 3 lb 11.9 oz (3.744 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
