Long Range Receiver 3 tubes
F.R.S. Radio Corp.; Detroit, Mich.
- Country
- United States of America (USA)
- Manufacturer / Brand
- F.R.S. Radio Corp.; Detroit, Mich.
- Year
- 1922/1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39281
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Long Range Receiver [3 tubes] - F.R.S. Radio Corp.; Detroit,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- Three dials (primary tuning control knobs) This set was a three circuit tuner with two stages of audio amplification. Tuning was done by a variometer and vario-coupler and a second variometer was placed in the plate circuit of the detector tube for regeneration. This set was sold as an assembled but unwired kit. Lacking an Armstrong regeneration patent the company could not offer the radio as a wired unit. The user could then wire the set as a regenerative receiver.
- Price in first year of sale
- 40.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Literature/Schematics (4)

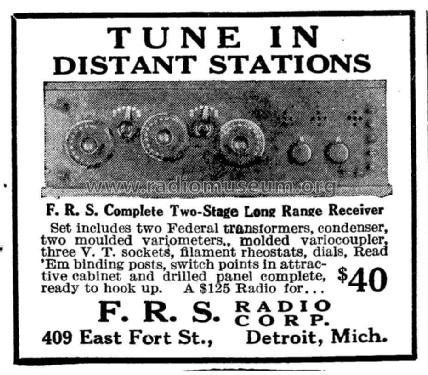

- December 1922 Radio News advertisement. page 1122
